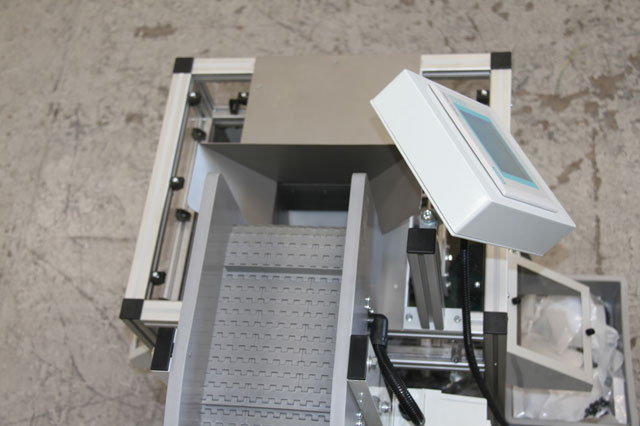

CW150 Checkweigher
Compact policeman style checkweigher designed to work with the inclined conveyor to give a filled bag weigh check with accept reject output conveyor.
The Comcount CW150 is an automatic checkweigher unit ideal for use with an automatic bagmaker to weigh check and reject out of tolerance bags up to 500g in weight.
The unit basically consists of a weighpan assembly mounted on a high precision weighing mechanism, an accept/reject conveyor which reverses to reject out of tolerance bags and a Siemens PLC control system.
The filled bags are fed into the checkweigher unit by means of a variable speed inclined conveyor at speeds of up to 15 bags per minute.
Features:
- Designed for use with an automatic bagger and printer system
- Siemens PLC control system with touch screen display
- Variable reject tolerance settings with job store facility
- Stainless steel weighpan with high precision load cell
- Reversible accept/reject output conveyor
- Maximum weight range 500g with 0.1g resolution
- Maximum bag size 150 x 150mm
- Operating speed up to 15 bags per minute
- Variable speed inclined conveyor to feed checkweigher
- Suitable for non trade approved applications
